Conveyor & Manipuladores de PCB

SOLUÇÕES PARA TRANSPORTE E MANUSEIO DE PCBS (BOARD HANDLING)

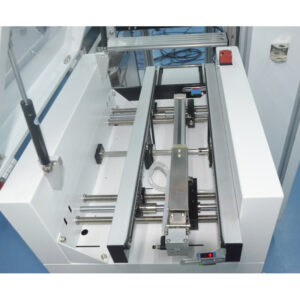

PCB Reject Conveyor SMD-1B100XL

The device is used in the back end of AOI and SPI For inspection NG OK board .
The fault board can be lifted for visual inspection without interrupting the production process.
The whole machine adopts miniaturization design and occupies a small area.
Surface electrostatic powder coating.
The frame adopts the perfect combination of European standard profile and sheet metal to ensure the process stability and excellent durability.

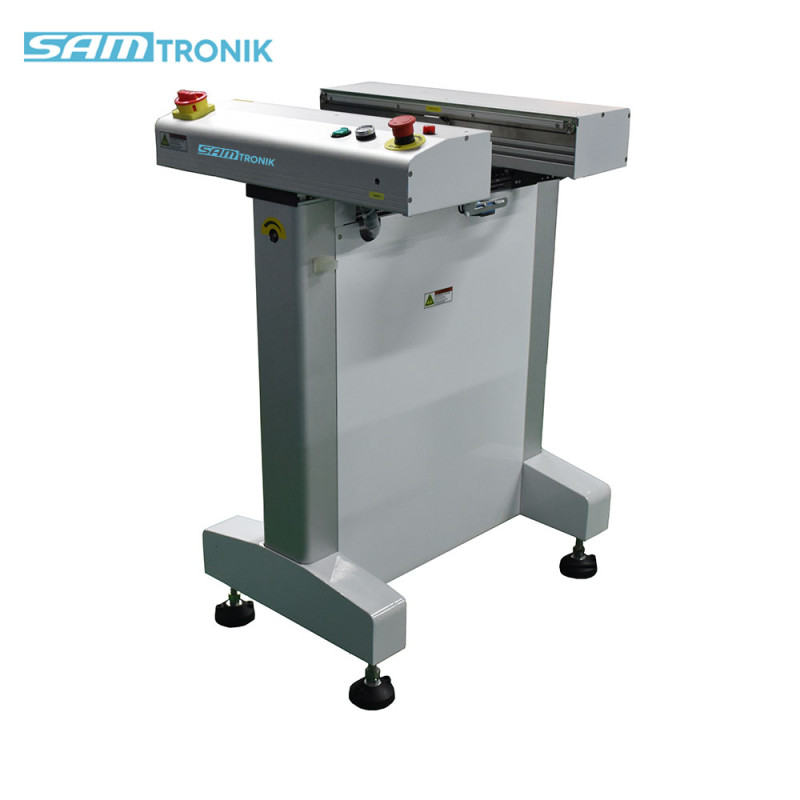

PCB Invertor SMI-1A050

User friendly touch control panel
CE highest safety level design
Operation mode and setting: (two modes: flip, pass through)
Laser engraved stainless steel side guide with excellent
quality and durability
Smooth and accurate reverse movement, anti jam design
Built in torque limiter for maximum safety
The “top safety cover” can be opened for easy access
to the hardware during maintenance
Subsequent reversal continues from the last
unloading position (short cycle time)
Small machine floor area

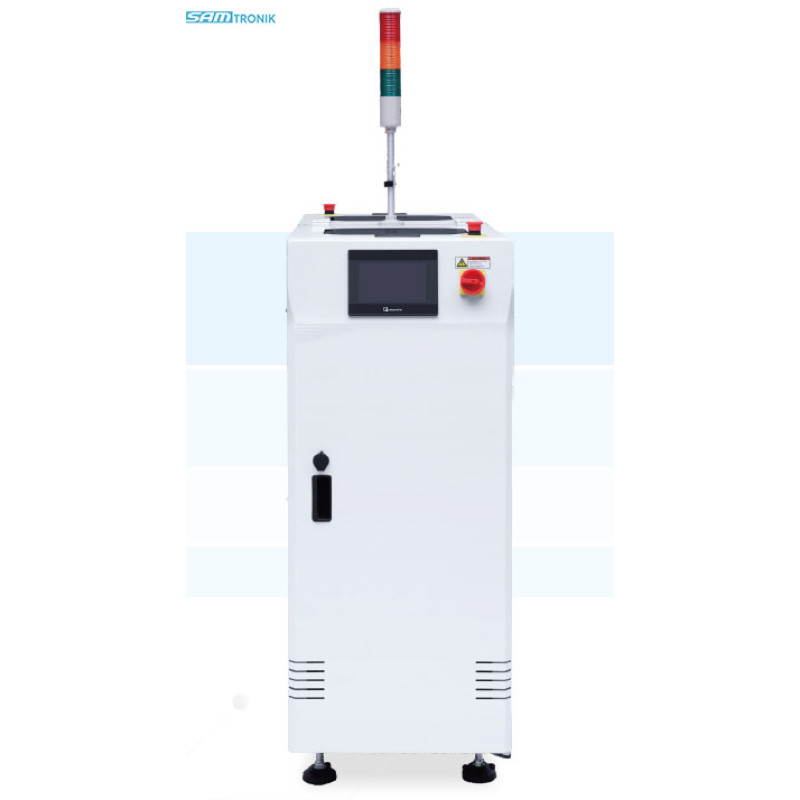

Automatic Magazine PCB Loader

Sturdy and stable Design.
In house design control board.
User friendly ‘soft touch’ LED membrane control panel.
Pressure regulated on pusher’s to prevent board damage.
Three points pneumatic clamping to align and secure magazine in position.
Self diagnostic Error Code display.
The pusher position can be adjust according to PCB thickness.
Used wear resistant cable to prevent intermittent problem.
SMEMA compatible .

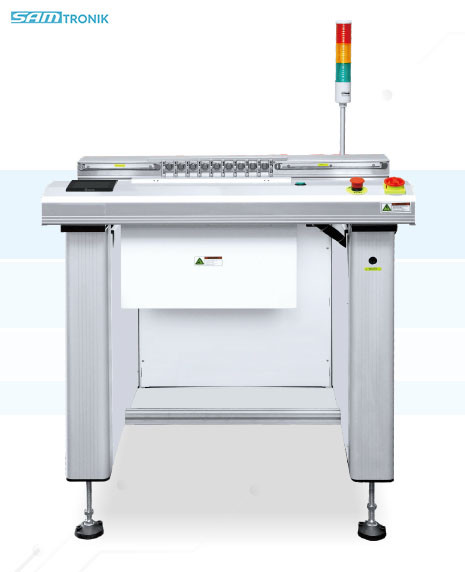

Inspection Conveyor

PLC Program control.
Easy way of belt replacement.
Heavy bottom designto prevent shifting.
PCB Precise stopping in position.
Anti stucktrack design.
Inspect/ Auto Mode.
SMEMA compatible.
